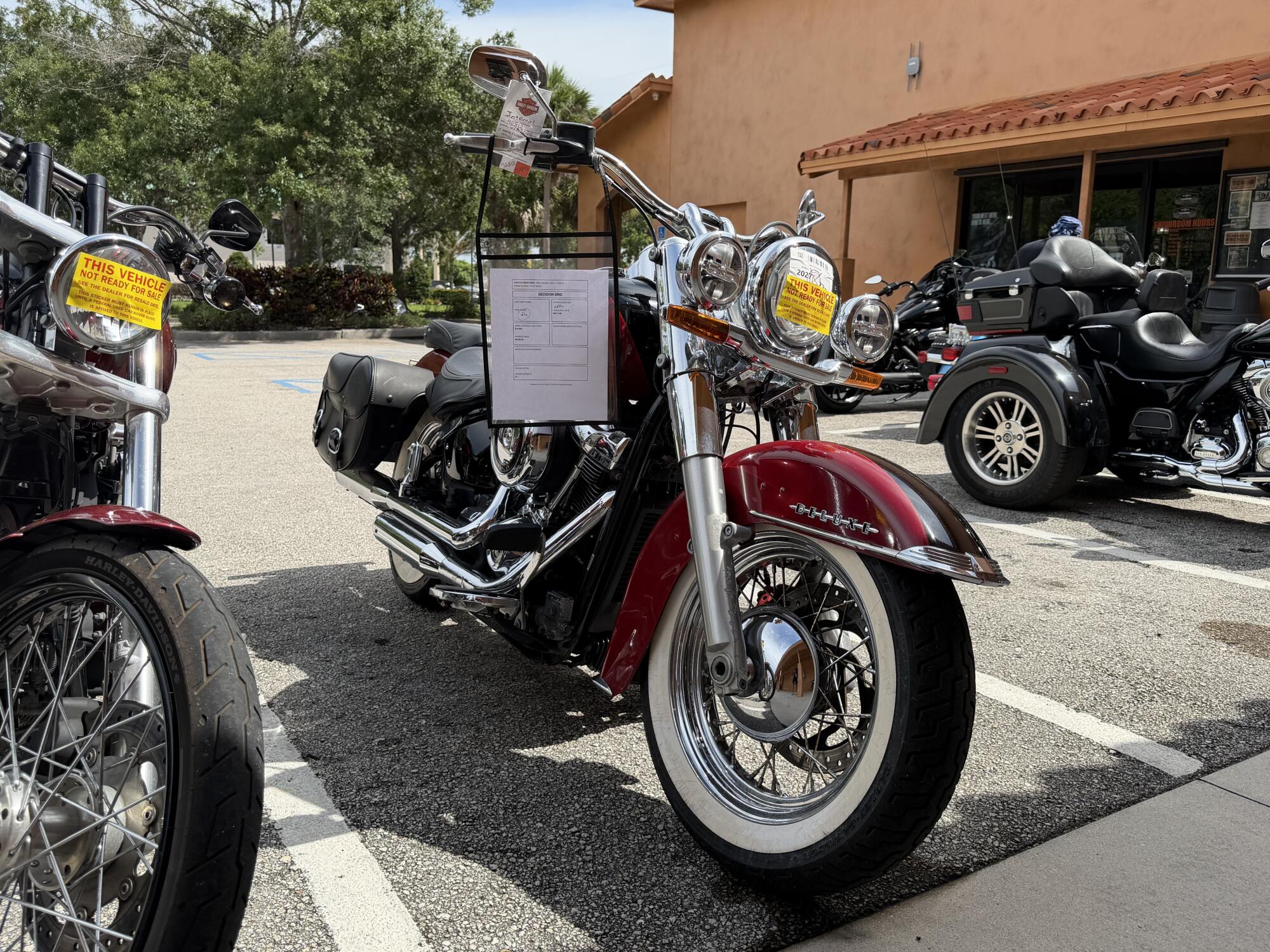

‹ Home › Inventory › Harley-Davidson® Deluxe 2020

The look of the Softail® Deluxe has always been deluxe. It’s the classic showstopper — born to stand out on a run down the Vegas strip. Now, underneath the bright chrome, you’ve got the ride of a seriously modern machine. Thirty-one pounds lighter, easier handling, massive power and acceleration, and all-day comfort. Everything a rider expects that technology can deliver. It’s a combination of vintage style and modern know-how unlike anything that ever hit the boulevard, set to the sound of the Milwaukee-Eight® 107 V-Twin engine. Settle into the comfortable new seat and grab the pullback handlebars. Start the show.

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  30
- Trail:

  5.7 in
- Wheelbase:

  1,630 mm
- Tires, front specifications:

  MT90B16 72H
- Tires, rear specifications:

  MU85B16 77H
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  668 lbs
- Weight, in running order:

  697 lb
Engine

add remove
- Engine:

  Milwaukee-Eight® 107
- Bore:

  3.9 in
- Stroke:

  4.4 in
- Displacement:

  106.55 in³
- Compression ratio:

  10.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  109.2 ft-lb
- Lean angle, right (deg.):

  28
- Lean angle, left (deg.):

  28
- Fuel economy:

  0.02 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Chrome Steel Laced
- Wheels, rear type:

  Chrome Steel Laced
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, ABS, security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
