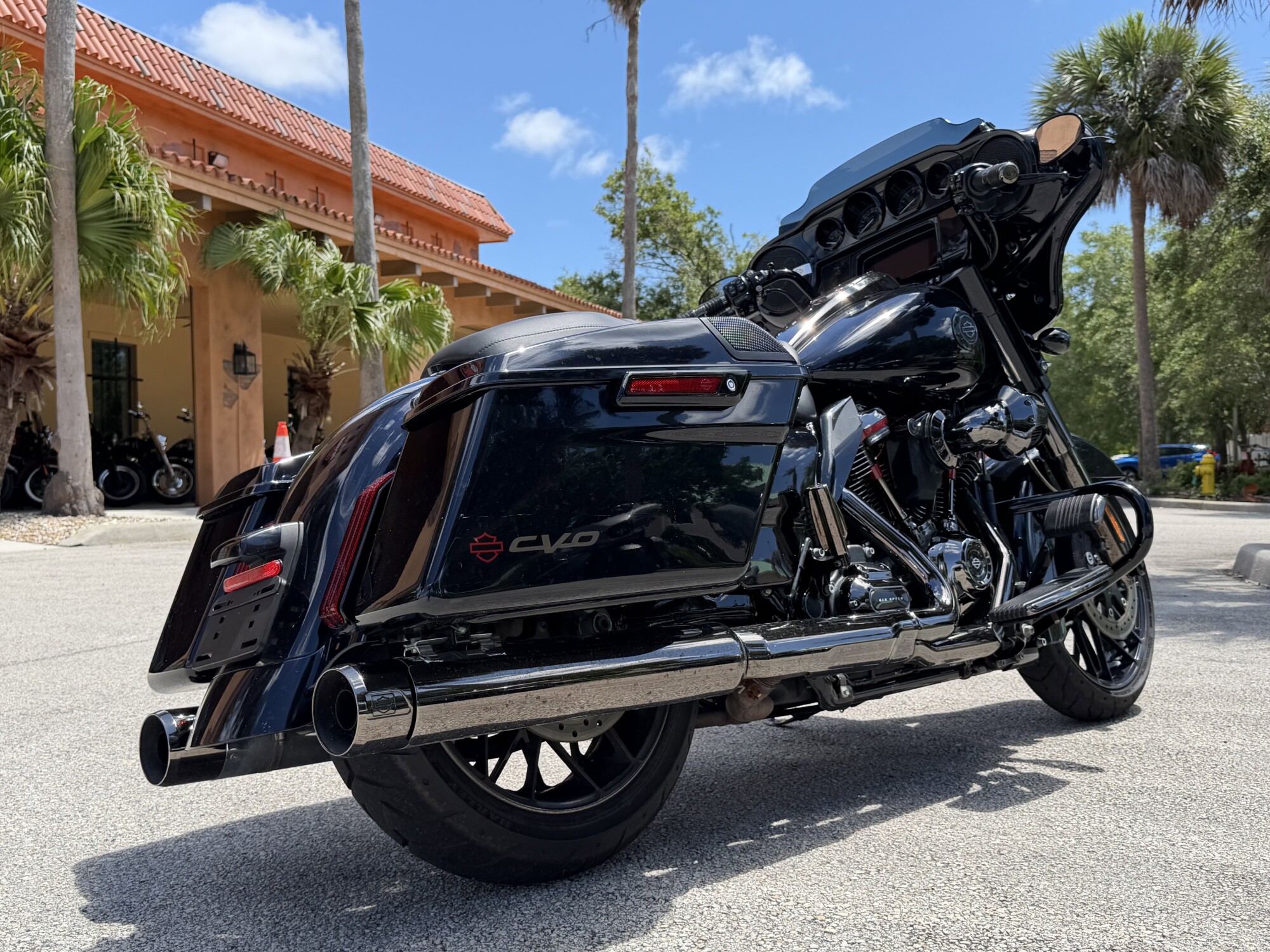

‹ Home › Inventory › Harley-Davidson® CVO™ Street Glide® 2022

A super-premium hot rod bagger for the rider who rolls loud and proud. The classic silhouette of the batwing fairing topped with jaw-dropping paint and finish details, premium audio and the pavement-peeling power of the Milwaukee-Eight 117 engine make this one outrageous bike, one that could only come from the world?s most-desirable motorcycle brand.

Specifications

Dimensions

add remove
- Length:

  95.9 in
- Seat height, unladen:

  27.2 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  BW 130/60B19 61H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  831 lbs
- Weight, in running order:

  866 lb
- Luggage capacity – volume:

  2.4 cu ft (0.068 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Dual, with crossover
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3750
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  31
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  41.3 mpg (5.7 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black with Contrast Smoked Satin Fugitive
- Wheels, front type:

  Gloss Black and Contrast Chrome Fugitive
- Wheels, rear type:

  Gloss Black and Contrast Chrome Fugitive
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  100
- Speakers:

  4
- Speaker size:

  Harley-Davidson Audio by Rockford Fosgate Stage II
- Headset specifications (if equipped):

  Boom! Audio 30K Wireless Headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (Passenger Headset Sold Separately)
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
